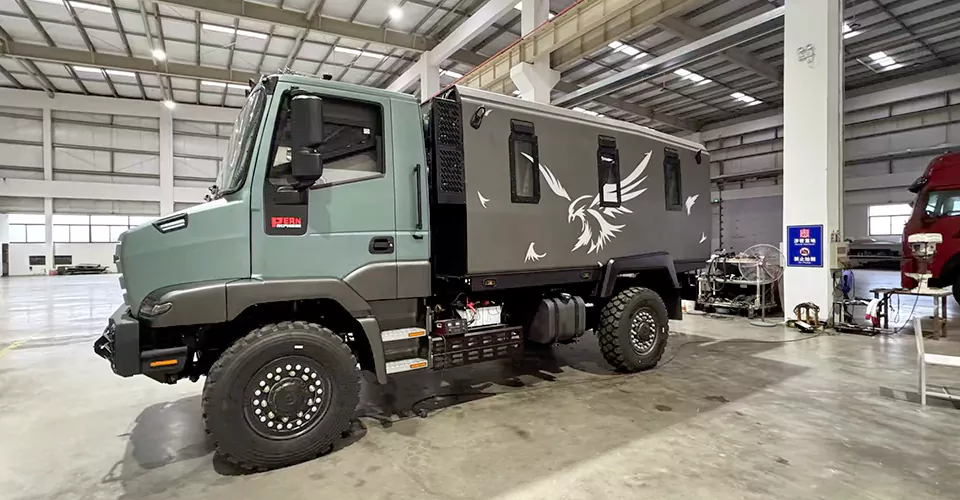

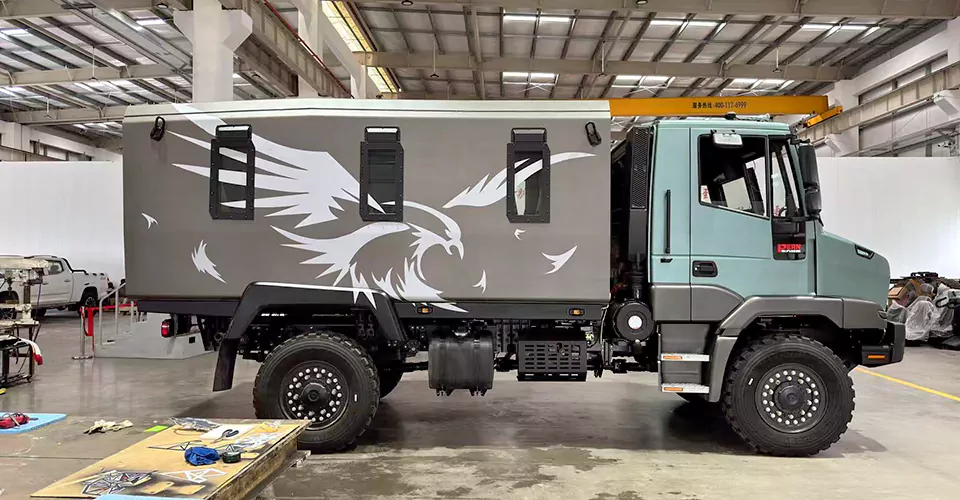

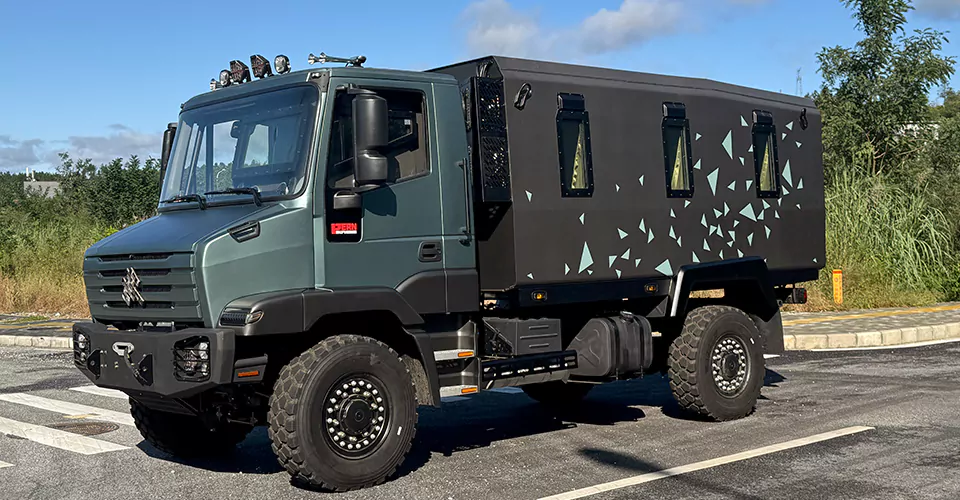

Offroad Chassis
This high-performance Offroad Chassis is engineered for rapid deployment in extreme environments. Designed as a multi-role wheeled platform, it combines powerful drivetrain performance, superior off-road capability, and modular flexibility—making it ideal for rescue, transport, and mission-specific applications.
Key Advantages
Powerful Performance
330 HP diesel engine with 1200 N·m torque for reliable power in demanding conditions.
All-Terrain Capability
4×4 drivetrain, high ground clearance, and strong climbing ability for extreme environments.
Enhanced Protection
Reinforced structure with optional ballistic protection for high-risk operations.
Modular Platform
Flexible chassis design for transport, rescue, and mission-specific configurations.
Applications
This Offroad Chassis is built for demanding industries and mission scenarios:
Emergency Rescue & Disaster Response
Rapid deployment in complex and inaccessible environments.
Military & Tactical Operations
Personnel transport, protected mobility, and mission customization.
Oil, Gas & Energy Projects
Reliable access to remote and off-road locations.
Infrastructure & Engineering Support
Transport equipment and crews where road conditions are limited.
Public Safety & Civil Defense
Multi-role platform for firefighting, communication, and logistics.
Specifications
Category | Item | Specification |
General | Model | F120 |
Drive Form | 4×4 | |
Body Type | Non-load-bearing | |
Occupants | 2 + 12 | |
Electrical System | 24V, negative grounding | |
Dimensions | Overall Dimensions (L × W × H) | 7140 × 2500 × 3180 mm |
Wheelbase | 4180 mm | |
Front / Rear Overhang | 1190 / 1780 mm | |
Approach / Departure Angle | 40° / 37° | |
Mass | Gross Mass | 12,000 kg |
Curb Weight | 11,000 kg | |
Max Towing Capacity | 5,000 kg | |
Axle Load (Front / Rear) | 5,500 / 6,500 kg | |
Category | Item | Specification |
Performance | Maximum Speed | 110 km/h |
Climbing Gradient | 40% | |
Ground Clearance | 310 mm | |
Turning Radius | 9 m | |
Vertical Obstacle | 500 mm | |
Trench Crossing | 700 mm | |
Fording Depth | 1000 mm | |
Driving Range | 600 km | |
Powertrain | Engine | Dongfeng Cummins ISDE6.7-330 Diesel |
Max Power | 243 kW / 2500 rpm | |
Max Torque | 1200 N·m / 1400–1700 rpm | |
Transmission | 6AT Manual-Automatic | |
Transfer Case | Zhuzhou Gear ZQC600-11 | |
Tires | 365/80R20 (Optional CTIS) |
